Flour handling system

Introduction:

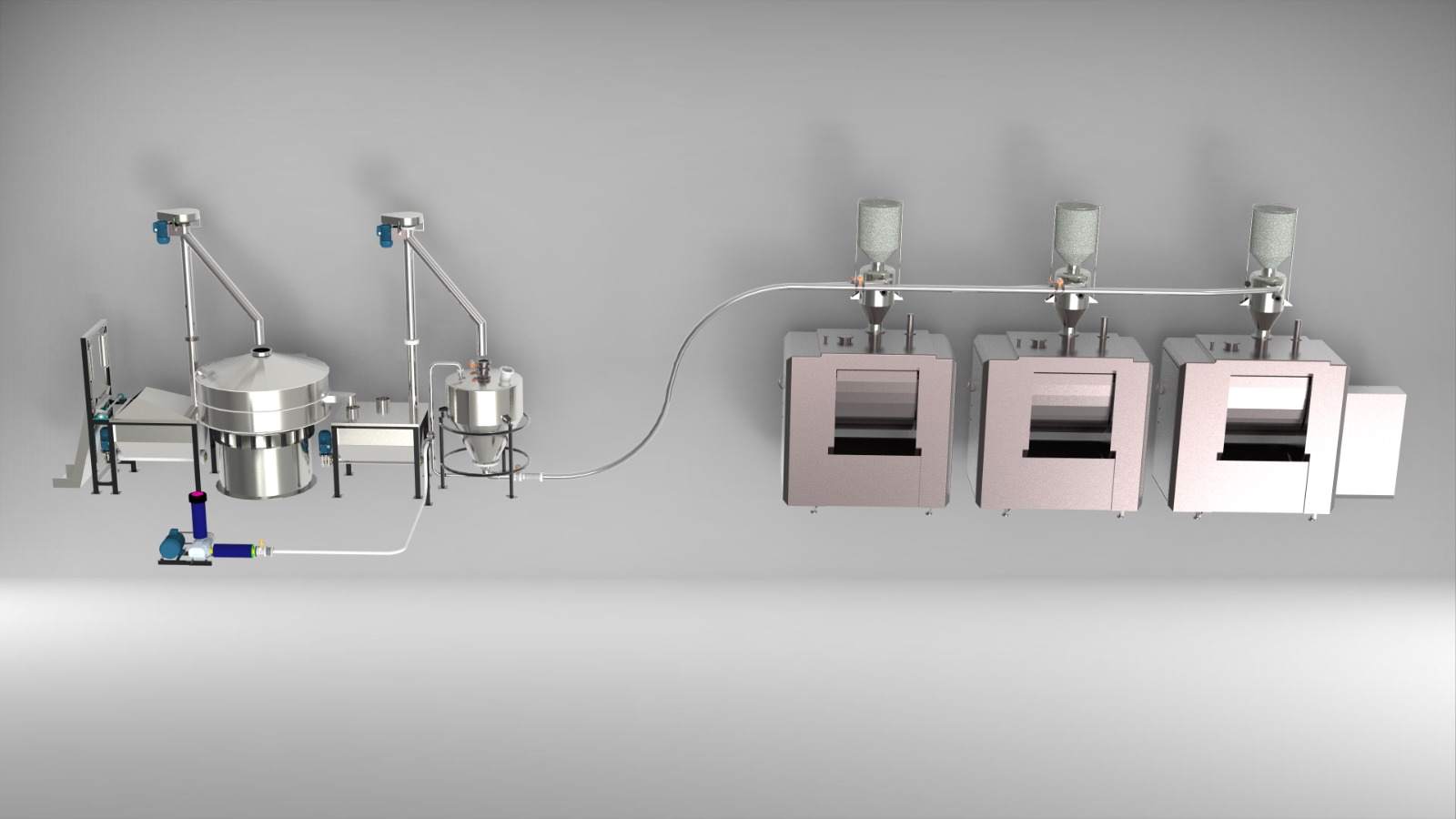

Flour Handling System

Biscuit & Bakery factory needs to unload flour bags and need to do sieving, weighing and dumping to the mixer. This manual work is a risk of hazard, needs a lot of manpower and makes the environment busy and dirty.

Our Flour handling system is an excellent solution to do this work within a moment by commanding the touch screen by selecting your desired recipe and destination mixer (number of mixers). Also it can be done for Grade-A and Grade-B flour handling.

Total system can be designed for 1000-5000Kg/h flour handling. Weighing the batch can be designed for 50-400Kg/batch. Total number of mixers can be done 6 (depends on capacity).

System can be design as-

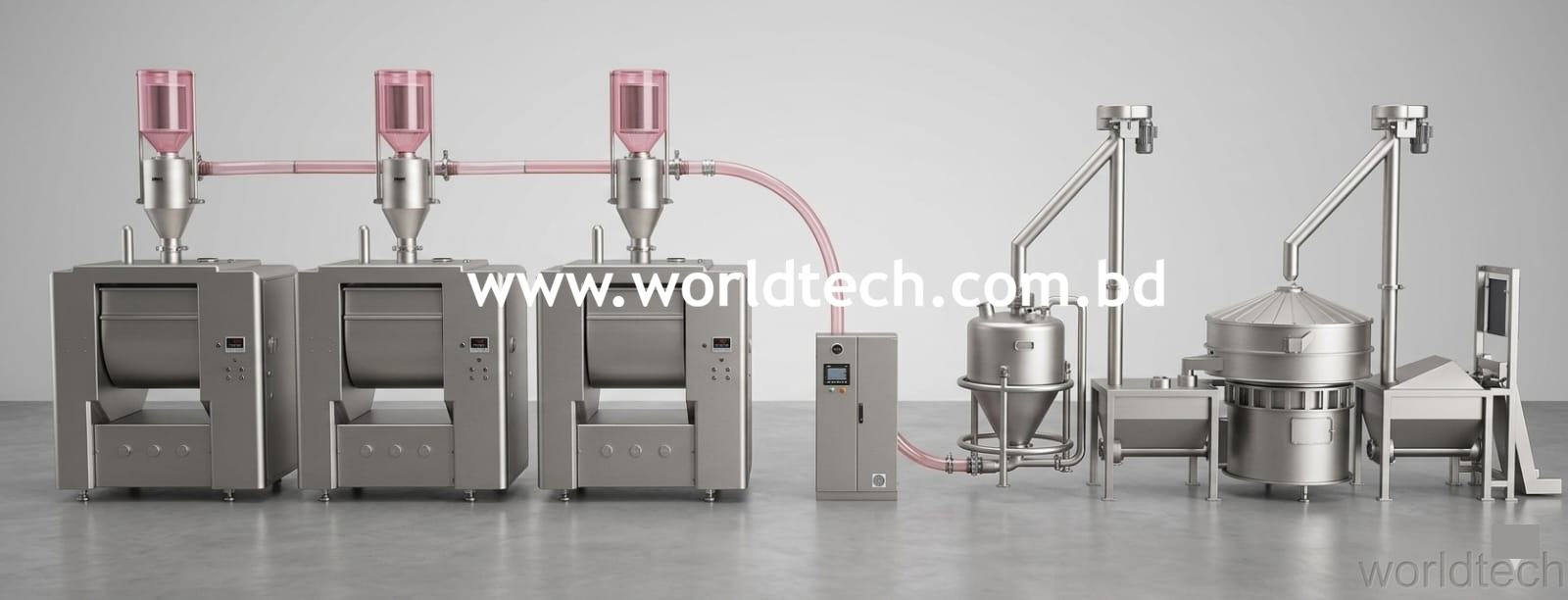

  1. An Individual weighing bucket system-Flour handling:

This system control panel is the same and a recycling pipe is connected for drrible feeding for more accuracy. Therefore this type of weighing Batching system/ flour handling system is more suitable if all the mixers are installed nearly on the same floor.

  1. Common weighing bucket system-Flour handling:

This system control panel is also the same but no recycling pipes and there is a  Common weighing bucket system therefore this type of weighing Batching system/ flour handling system is more suitable for different positioned mixers installed even if not on the same floor.
