Full material SS304 & SS316 combined
2 Sets of 1.5 kW centrifugal SS head pumps
Control box/system
Vessels & Filters
Cylinder Volume – 75 L, φ400 × L600 mm, 2.5 mm thickness
Top oval and easy removal as a manhole, connecting with screws and gasket.
Bottom oval enclosure
Drain ¾” SS ball valves with a distance of 10” from the floor to collect product in a bucket
Inner SS316 circular mesh of ≤2 mm perforation, easy to open (Jointing portion overlapped and followed by 2 mm perforation)
Fitted with a square O-ring gasket of food grade
Nylon 40 Mesh cloth filter
Spare 4 pcs. cloth filters would be provided
Mirror polish
No dead angle, no residue

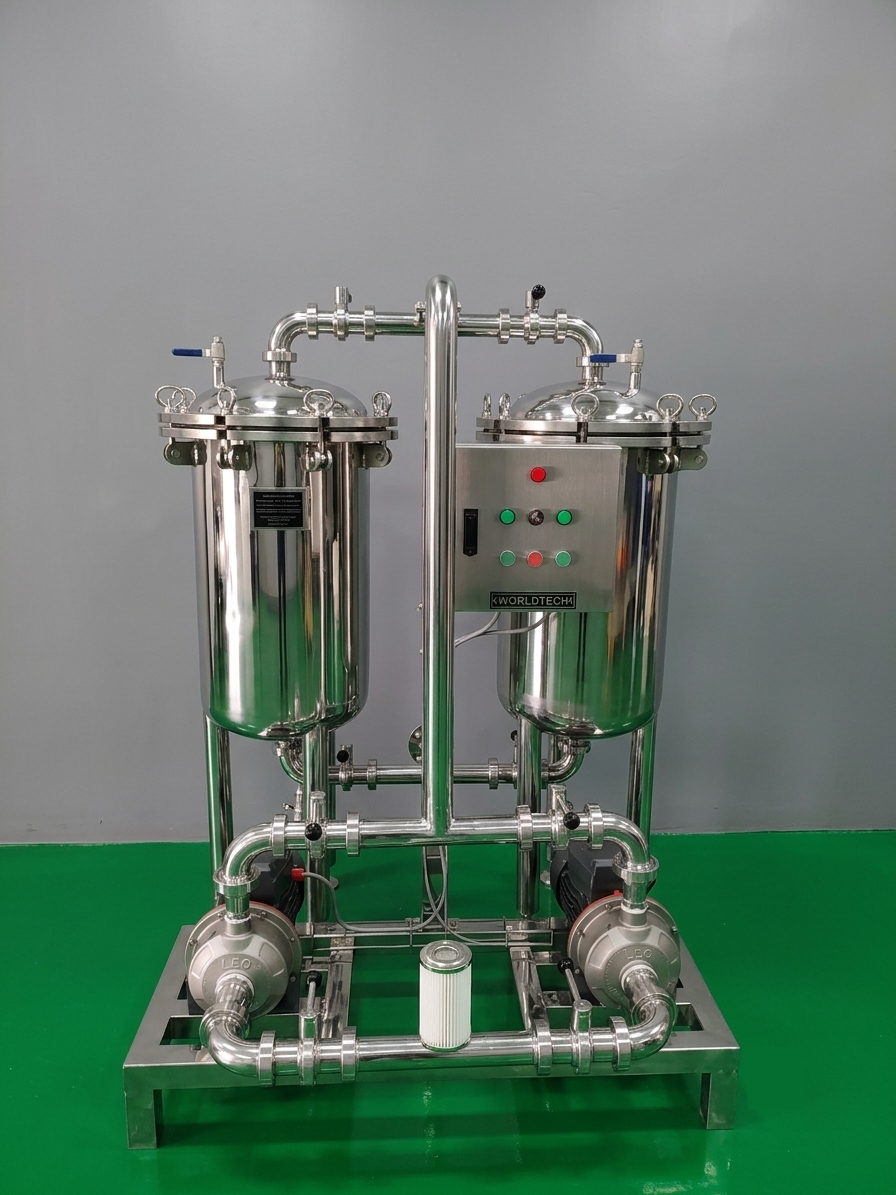

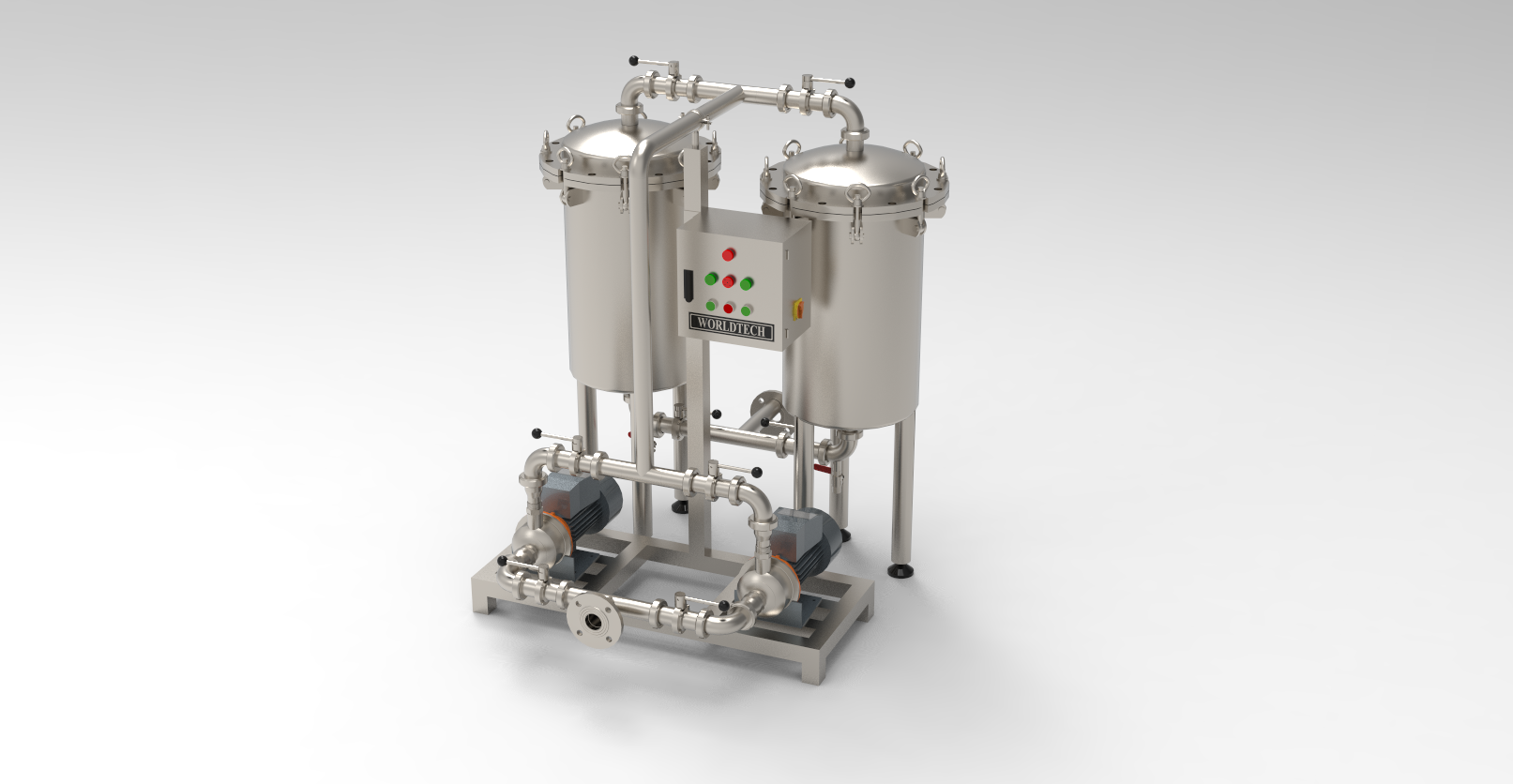

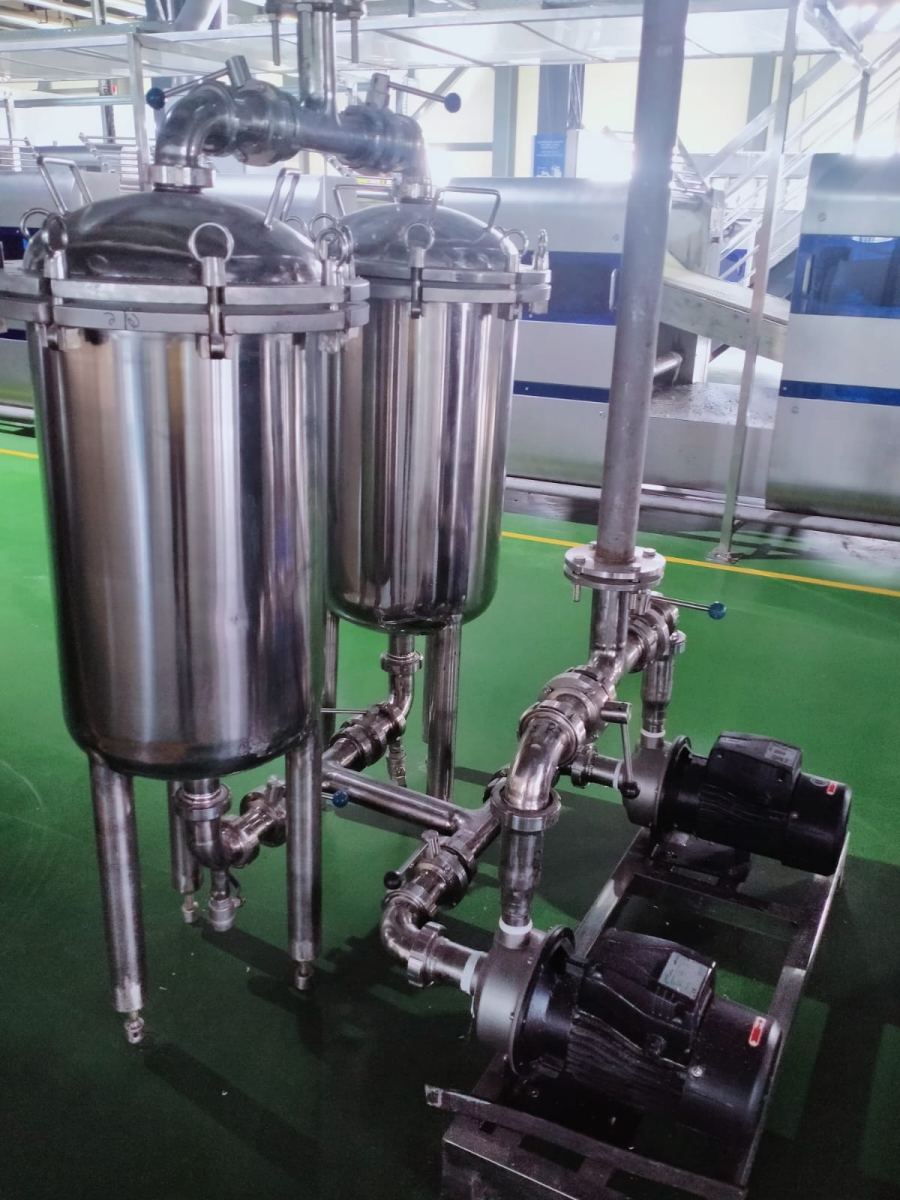

A duplex filter is a dual-chamber fluid filtration system linked by a changeover valve. It allows continuous operation by routing liquid through one chamber while the second stays on standby or undergoes cleaning, preventing system shutdowns during maintenance. This is widely used in the noodle industry for filtration of Kansui, oil, brine, saltwater, etc.
